AI Ultrasound Module

1.0 Overview

This module assesses whether a simulant receives an ultrasound during a specific antenatal care visit, tracks the details of that care, and outputs a “believed” gestational age at the end of pregnancy for that simulant based on the simulant’s real gestational age at the end of pregnancy and the measurement error specific to the timing and type of gestational age dating care they received. Notably, coverage and type of ultrasounds offered at ANC visits will be scenario-dependent.

1.1 Gestational Age Dating Research Background

Gestational age dating is a key component of antenatal care as it informs which services are rendered when (ex: intermittent preventative treatment for malaria should not be administered before 20 weeks of gestation and is recommended monthly thereafter) and pregnancy due date which can be used to identify preterm labor or pregnancies of advanced gestational age (>42 weeks) that may indicate specific medical attention.

In the field of obstetrics, gestational age is expressed in terms of time elapsed from the first day of the last menstrual period (LMP) prior to conception under the assumption of a regular 28 day cycle with ovulation occurring on day 14 of the cycle (even for pregnancies in which these assumptions are known not to hold!). Pregnancy due dates are 40 weeks (280 days) after the first day of the last menstrual period under these assumptions.

Gestational age can be assessed in pregnancy according to several methods, including ultrasound, last menstrual period date, and fundal height measurement. Gestational age at birth can also be assessed according to characteristics of the newborn. Each method varies in its accuracy and utilization of these methods will vary based on availability and timing with which gestational age is assessed. A summary of these methods is included below.

1.1.1 Method overviews

1.1.1.1 Ultrasound

Ultrasound is a technology that uses sound waves to create images of a fetus. Gestational age can be informed via ultrasound by measuring fetal size and using that to inform the maturity of the fetus. GA dating via ultrasound is more accurate in the first trimester when there is less variation in fetal size by gestational age, as later in pregnancy factors like intrauterine growth restriction may cause a fetus to be small for their gestational age making it more difficult to assess gestational age based on fetal size. Early ultrasounds measure crown-rump length (CRL) and mean sac diameter (MSD) to inform gestational age. Later pregnancy ultrasounds use additional measurements such as biparietal diameter, head circumference, femur length, and abdominal circumference to assess gestational age.

Ultrasound gestational age dating performed in the first trimester is typically considered the gold standard method in gestational age dating.

1.1.1.2 Last menstrual period

Gestational age dating by LMP is limited for several reasons, outlined below: - Some women may not have experienced a recent LMP due to becoming pregnant following amenorrhea induced by lactation, birth control, or some other cause - Recall bias - Many menstrual cycles will deviate from the assumption of ovulation occurring 14 days after the first day of a menstrual period (meaning a fetus may be more or less mature than the perfectly recalled LMP date would imply)

LMP dating is often considered to be reliable under the following conditions: - It can be reported - Reporter is “certain” of LMP date - Reporter has regular cycles

Studies on LMP’s accuracy relative to first trimester ultrasound indicate that there is a greater magnitude of error in gestational age assessment and also tends to be a systematic bias that underestimates gestational age (increases the likelihood of believed preterm status among truly term pregnancies). As summarized in [Rittenhouse-et-al-2019] (see paper for embedded references):

“Limitations of LMP as a dating method are well-documented.[9] Women with lower educational attainment[9, 36] and later presentation to care[8, 37] tend to have less accurate recall of LMP, and the measure is subject to number preference (e.g. rounding to zero or five, or preference for 1st or 10th of month) and recall bias.[9, 10] Consequently, GA estimates by LMP alone suffer imprecision, with some estimates differing by weeks when compared to ultrasound.[38–41] Indeed, data from the Zambia Perinatal Record System, an electronic system that captured more than 250,000 births over a 6 year period in Lusaka, suggests an impossibly high preterm birth rate of 35% when LMP is used to determine GA.[11, 42, 43] “

Additionally, as summarized by [Moore-et-al-2015], “LMP is less well recalled in late attenders [16–19], and determination of LMP can be impeded by low literacy rates and cultural factors [7,8].”

Furthermore, there are reports that LMP dates cannot be reported in significant portions of pregnancies in LMIC settings. See the following references:

• More than two thirds of pregnancies assessed in a refugee camp on the Thai–Burmese border could not report an LMP date due to illiteracy and unfamiliarity with the Gregorian calendar

• Approximately 25% of women in a South African study were not able to report an LMP date. Of those who did report, 67.2% felt certain about the date.

• 8.3% of women in a Nigerian study could not report the date of their LMP

• At the time of birth, it was reported that only 45% of women presenting to a hospital in Ethiopia recalled their LMP date

Todo

Perform a more targeted search for data on the proportion of pregnancies with unknown LMP dates in LMIC settings, preferably specific to time of assessment. We should extract at least the following information for such studies:

• Country

• Study size

• Population description

• Timing of assessment

• Details of LMP recall (ex: attendant-assisted recall, prospective vs. retrospective, etc.)

• Definition of “unknown”, “unreliable”, or “uncertain”

• Proportion of pregnancies classified as unknown/unreliable/uncertain

Warning

Many studies that compare LMP gestational age dating accuracy to other methods have inclusion criteria of “reliable” or “certain” LMP estimates, meaning that the LMP accuracy in these studies will be overestimated relative to its actual use. We should be careful in evaluating the inclusion/exclusion criteria of studies that assess LMP gestational age dating accuracy.

Additionally, prospectively collected menstrual period dates (via calendar tracking or tracking via an app) will be more accurate than retrospectively collected LMP dates due to recall bias. Given the differential practices around prospective tracking (due to differential availability of apps and/or cultural differences) between high and low resource settings, we should aim to have the accuracy of LMP GA dating informed from studies performed in populations similar to the ones we are modeling.

1.1.1.3 Fundal height measurements

Measurements of fundal height, the distance between the pubic bone and umbillicus can be used to approximate fetal growth after 20 weeks of gestation, with an expected centimeter for every week of gestational age (27 cm for 27 weeks, for example). This method is limited in that it cannot distinguish between variation in fetal size due to variation in gestational age or factors that cause small for gestational age (like intrauterine growth restriction). It is additionally limited in that it may vary due to differences in maternal stature and becomes less reliable in late pregnancy when the fetus “drops” into the pelvis (“lightening”), usually 2-4 weeks before labor. It is also subject to measurement error due to provider skill and resources (it is reported to be measured with fingers if measuring tapes are not available).

1.1.1.4 Newborn assessment

In cases in which a reliable estimate of gestational age is not available at the onset of labor, gestational age at birth can be assessed by evaluating the newborn according to physical and neuromuscular signs. The New Ballard and Dubowitz scoring systems are a measurement tools meant to be performed in the first hours after birth that can estimate a neonate’s maturity and distinguish between small for gestational age term infants from truly preterm infants [Lee-et-al-2017].

1.1.2 Clinical practice overview

The WHO recommends that all pregnancies undergo at least one ultrasound for identification of certain complications as well as gestational age dating. However, ultrasound technology is not available at all ANC visits across LMICs. Additionally, ANC attendance during the first trimester when US GA dating is most accurate is low in LMICs. Therefore, LMP is commonly used to assess gestational age. ANC attendants often assist in recall of LMP dates by consulting a calendar and prompting the recall of events with known dates that occurred around the same time. In instances when LMP is unknown and ultrasound is unavailable, fundal height measurements will be used to assess gestational age (as reported as common practice in Kenya in [Oluoch-et-al-2015]).

1.2 Modeling strategy overview

Our modeling strategy will follow the steps below:

1. Assess when during a pregnancy gestational age dating occurs. We assume this occurs at their first ANC visit or at the onset of labor for simulants who do not attend ANC

2. Determine whether the simulant has a “reliable” or “unreliable” LMP date based on the assumed probabilities specific to the trimester in which gestational age dating occurs for that simulant.

3. Assess the method by which gestational age is dated for a given simulant based on the timing of their GA dating as well as reliability of their LMP date

4. Ascertain their “believed” gestational age at birth according to the measurement error associated with the simulant’s GA dating method and timing as well as the simulant’s underlying “true” gestational age at birth exposure

We will assume pregnancies are dated by the method specified in the table below, conditional on the level of ANC care received for a given simulant as well as whether the simulant has a “reliable” LMP date. We will determine whether a simulant’s LMP date is “unreliable” according to the following probabilities that increase as time has elapsed from the LMP. Simulants who attend their first ANC visit in the first trimester will be subject to the first trimester rate, those who attend their first ANC visit in the second trimester will be subject to the second trimester rate, and those who do not attend ANC until the third trimester or who do not attend ANC at all will be subject to the 3rd trimester rate.

Todo

Finalize the following values based on information obtained from literature search. The following values are a rough starting point based on the literature found so far

• First trimester ANC 8% [Nigerian study, <20 weeks at time of assessment]

• Second trimester ANC 25% [South African study… midpoint?]

• Third trimester ANC 55% [Ethiopian study at labor presentation]

^Note this is among “care attenders”… generalizing to the no ANC population will likely underestimate given that this is positively associated with low SES/low educational attainment

ANC care	Reliable LMP	Unreliable LMP
1st trimester US	US (with 1st trimester accuracy)	US (with 1st trimester accuracy)
2nd trimester US	US (with 2nd trimester accuracy)	US (with 2nd trimester accuracy)
Third trimester US	LMP (potentially with trimester-specific accuracy)	US (with 3rd trimester accuracy)
No US, ANC	LMP (potentially with trimester-specific accuracy)	Fundal height
No ANC	LMP (potentially with trimester-specific accuracy)	Prenatal assessment: ??? undefined or some very large value? Postnatal assessment: neonatal assessment??

Note

The New Ballard score postnatal assessment varies from all other methods. It can be used to influence access to neonatal interventions including CPAP and neonatal probiotics for preterm infants. However, it should not be used to influence the facility choice module or determine access to ACS during labor.

Todo

Finalize gestational age dating accuracy data seeking for the following GA assessment methods:

• US in first trimester

• US in second trimester

• US in third trimester

• LMP among subjects with known/reliable/certain date

• LMP among all subjects

• LMP among subjects with uncertain/unreliable date

• Fundal height

• Neonatal assessments like the New Ballard Score

For each study that evaluates the accuracy of LMP GA dating, we should extract at least the following characteristics of each study:

• Country

• Study population size

• Study population description

• Study population inclusion/exclusion criteria, with specific focus on whether subjects with unknown/unreliable LMP dates were excluded

• Timing of GA assessment

• Details of assessment (for LMP: attendant-assisted recall, prospective or retrospective collection, etc.)

• Magnitude of bias in GA measured in weeks (mean difference in GA relative to alternate method) and/or on preterm birth classification (OR or RR on PTB prevalence relative to alternate method)

• Magnitude of error in GA measurement in weeks (standard deviation/error or +/- interval) and/or on preterm birth classification (sensitivity/specificity)

Note that we should restrict our search to LMICs/resource-limited settings for LMP studies. The remaining methods should have a preference for LMIC settings, but may be expanded to other locations as necessary.

2.0 Module Diagram and Data

Todo

Update the following content to be compatible with updated modeling strategy

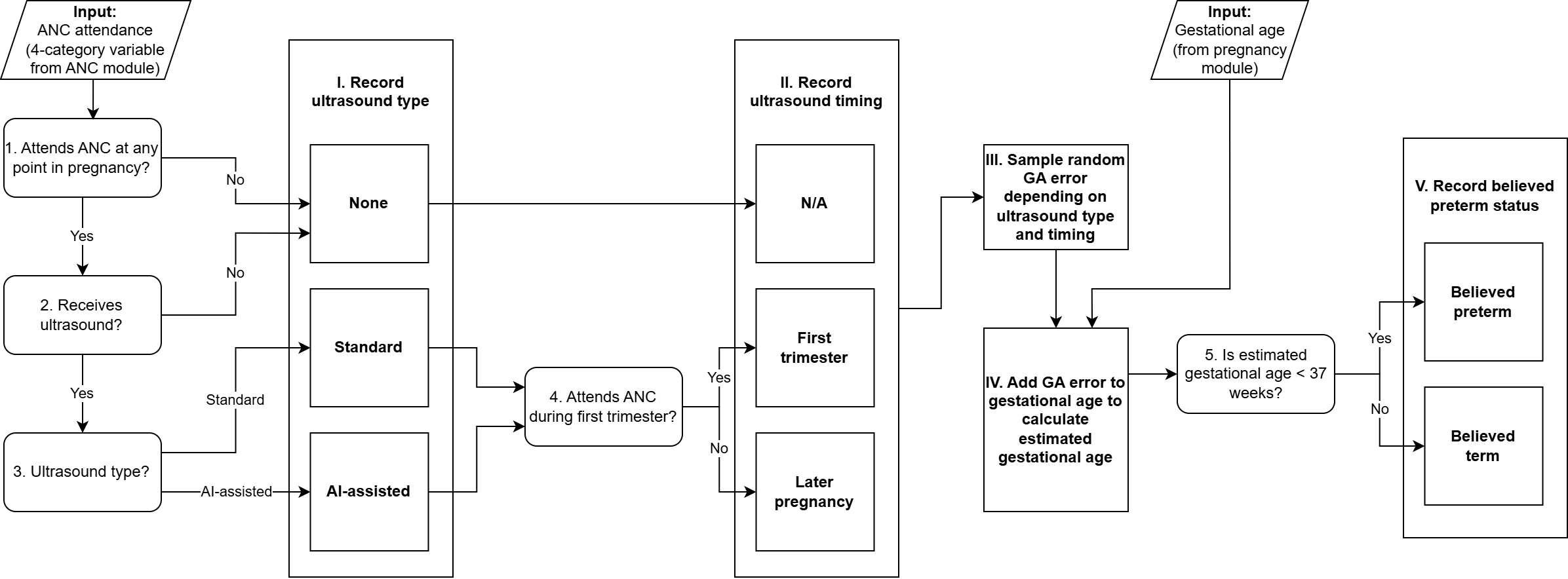

2.1 Module Diagram

2.2 Module Inputs

Module required inputs

Input	Source module	Application	Note
ANC attendance category	Antenatal care module	Decision node 1	4-category exposure variable. As described in the facility choice model document, ANC attendance is correlated with other model variables.
Gestational age at end of pregnancy (intervention modified)	Pregnancy module	Action point IV	Point value in days

2.3 Module Decision Nodes

Module decision nodes

Decision node	Description	Information	Note
1	Attends ANC at any point in pregnancy?	Decide “No” if ANC attendance category is none; decide “Yes” otherwise	ANC attendance has four exposure categories: The none category corresponds to no ANC attendance, while the other three categories indicate some ANC attendance
2	Receives ultrasound?	Scenario-dependent variable: see the pregnancy component scenario table for values (and baseline coverage section below for baseline coverage)	“Yes” if random propensity <= scenario-specific ultrasound coverage defined in table
3	Ultrasound type?	Scenario-dependent variable: pregnancy component scenario table for values (and baseline coverage section below for baseline coverage)	Possible values are “none,” “standard,” and “AI-assisted”
4	Attends ANC during first trimester?	Decide “Yes” if ANC attendance category is first_trimester_only or first_trimester_and_later_pregnancy. Decide “No” otherwise.
5	Is estimated gestational age < 37 weeks?	“Yes” or “No” depending on the estimated gestational age calculated in Action point IV

2.3.1: Baseline coverage

We assume 100% of ultrasounds are standard (and 0% are AI-assisted) at baseline. Baseline coverage of ultrasound among those who attend ANC:

Baseline ultrasound coverage values

Location	Value	Note
Ethiopia	60.7%	Ethiopia ultrasound rate
Nigeria	58.7%	Nigeria ultrasound rate
Pakistan	66.7%	India ultrasound rate (Table 8.12, averaged percentage of women attending ANC 1-3 times and 4+ times). we currently use ultrasound utilization rates derived from the India DHS 2015-2016 as an imperfect proxy that can hopefully be improved with further research

2.4 Module Action Points

Module action point

Action point	Description	Information	Note
I	Record ultrasound type	Record “None”, “Standard”, or “AI-assisted” to output depending on responses to decision nodes 1, 2, and 3.
II	Record ultrasound timing	Record “N/A”, “First trimester”, or “Later pregnancy” to output depending on responses to prior decision nodes
III	Sample random error for estimated gestational age	GA error is normally distributed with mean 0 and standard deviation depending on ultrasound type, as specified in the table below	See instructions in section 2.4.1 Calculation of estimated gestational age below
IV	Calculate estimated gestational age	Add the random GA error from Action point III to the gestational age from the pregnancy module, and record to output	See instructions in section 2.4.1 Calculation of estimated gestational age below
V	Record believed preterm status	Record believed_term or believed_preterm to output depending on respond to decision node #5	Corresponds to estimated gestational age < 37 weeks

2.4.1 Calculation of estimated gestational age

Estimated gestational age should be calculated by adding a randomly sampled value from a normal distribution with a mean of zero and a standard deviation defined below to the simulant’s assigned gestational age at birth exposure (input from the pregnancy module).

Standard deviation values by ultrasound type

Ultrasound type	Ultrasound timing	Standard deviation	Reference
None	N/A	10 days
Standard	First trimester	6.7 days
Standard	Later pregnancy	XXX days
AI-assisted ultrasound	First trimester	5 days
AI-assisted ultrasound	Later pregnancy	XXX days

Note

The “Later pregnancy” ultrasound timing corresponds with our Antenatal Care Attendance model “later pregnancy visit.” Attendance of the later pregnancy ANC visit is a dichotomous variable in our model that is True if a simulant attends an ANC visit at any time during their second or third trimester and false otherwise. Our model does not consider the timing or frequency with which ANC visits are attended in the second or third trimesters.

Todo

Update values in the table above. The existing value for standard ultrasound represents an average value across pregnancy rather than differential values based on timing of u ltrasound measurement. The data in this paper referenced below may be a good source for updating the GA estimation standard deviation to be specific to trimester of measurement.

Todo

Add references for these numbers. Here’s the notebook I used to get them, which includes the citations.

Note

BMGF sent us data on the error distribution of ultrasound accuracy based on gestational age so we could make this more accurate. (See first bullet in Limitations list below for more details.)

2.5: Module Outputs

Module outputs

Output	Value	Note
Ultrasound type	none, standard, ai_assisted	Used to inform Ultrasound Summary output. Not needed for direct observation.
Ultrasound timing	N/A, first_trimester, later_pregnancy	Used to inform Ultrasound Summary output. Not needed for direct observation.
Ultrasound summary	none, standard_first_trimester, standard_later_pregnancy, ai_assisted_first_trimester, ai_assisted_later_pregnancy	Desired categories to be observered. Note that collapsing in this way allows us to avoid unnecessary stratifications in our outputs while maintaining the ability to perform V&V on ultrasound timing.
Estimated gestational age	Point values in days	Used for V&V, and determination of eligibility for antenatal corticosteroids
Believed preterm status	“believed preterm” or “believed term”	Used for V&V and for facility choice module in intrapartum component

3.0 Assumptions and limitations

• Single cohort of pregnancies does not allow for cyclic effects such as improved ANC visit rates due to ultrasound presence

• The data for baseline ultrasound utilization at the ANC is non-ideal for all of the locations. Our data for Ethiopia is most aligned with the value we are trying to find, as it comes from a paper that estimates ultrasound utilization at ANC, in a specific municipality of Jimma in Ethiopia. For Nigeria, our literature value is less trustworthy, coming from a paper that reports the percentage of study participants who had previously had an obstetric ultrasound. We were unable to find any value for Pakistan, instead using data from the India DHS 2015-2016 to inform our Pakistan ultrasound coverage. India is probably not a great proxy for Pakistan, as use of ultrasound technology in India is heavily regulated (see here).

Todo

If more suitable baseline coverage data for standard ultrasound utilization at ANCs for Nigeria or Pakistan, we should use that data instead and update this documentation accordingly.

Note

BMGF sent us data on the error distribution of ultrasound accuracy based on gestational age so we should be able to address the first limitation. We also found a paper that estimated uncertainty of GA dating by ultrasound was 6–7 days at 14 weeks’ gestation, 12–14 days at 26 weeks’ gestation and > 14 days in the third trimester.

From Nathaniel: I think the gestational age in the BMGF data and the gestational age in the paper are actually referring to two different things, and we may want to take both types of variation into account:

The BMGF microdata compares the gestational age at birth estimated by ultrasound (given at some unknown time during the pregnancy) with gestational age at birth estimated by last menstrual period (LMP). I think the paper compares the gestational age estimated by an ultrasound in late pregnancy at the time of the late ultrasound with the “true” gestational age at the time of the late ultrasound, determined from a combination of LMP and an ultrasound early in the pregnancy. From the BMGF data, I was interested in seeing whether there was bias (nonzero 1st moment) or skew (nonzero 3rd moment) in the error distribution depending on the gestational age at birth. It looks like there is: For babies born early, you’re more likely to overestimate their gestational age, whereas for babies born late, you’re more likely to underestimate their gestational age (that is, when using LMP vs. an ultrasound).

From the literature, I’m interested in how the size of the variance (2nd moment) of the error changes with the timing of when the ultrasound is administered. We know that the variance is higher when the ultrasound is given later in pregnancy, and the paper quantifies how much higher.

4.0 Verification and Validation Criteria

• Confirm ANC visit rate matches expectations

• Confirm ultrasound rates matches inputs for all scenarios

• Confirm that ratio between ultrasound timing categories matches the expected ratio between first trimester ANC attendance and later pregnancy only ANC attendance. More specifically, the following should be true standard_first_trimester / standard_later_pregnancy == ai_assisted_first_trimester / ai_assisted_later_pregnancy == (anc_first_trimester_only + anc_first_trimester_and_later_pregnancy) / anc_later_pregnancy_only

• Confirm that ultrasounds performed in the first trimester occur only among those who attend ANC in the first trimester according to their ANC attendance category (and likewise for later pregnancy)

• Confirm gestational age estimate and real gestational age have the correct margin of error based on ultrasound type and timing
