Antenatal Supplementation: Iron-Folic Acid, Multiple Micronutrients, and Balanced Energy Proteins

Abbreviations
Abbreviation	Definition	Note
BEP	Balanced Energy Protein
MMS	Multiple Micronutrient Supplement
IFA	Iron-folic acid
BMI	Body Mass Index
ANC	Antenatal coverage

Intervention Overview 

Note

This intervention has been previously modeled in Vivarium and documentation can be found here.

Maternal supplementataion during the prenatal period is a critical intervention to support the increased nutritional demands due to the mother’s changing physiology and fetal growth. Maternal supplementation in low and middle income country settings are often accessed through antenatal care (ANC) services and early initiation of supplementation has been associated with improved outcomes. There are various maternal supplementation regimens that provide varying combinations of micro- and macro-nutrients and therefore have varying impacts on both maternal and child health. Major classes of maternal supplementation regimens are outlined in the table below.

Iron and Folic Acid (IFA): IFA affects outcomes including maternal anemia (which is a risk factor for maternal mortality) and infant birthweight (a risk factor for infant mortality). Additionally, folic acid deficiency is associated with haematological consequences and congenital malformations, however the effect on congenital malformations is sensitive to timing of administration relative to conception. The latest cochrane review of IFA trials was performed by [Pena-Rosas-et-al-2015]; notably, as IFA is considered the current standard of care, there are few studies that compare IFA to placebo or no treatment.
Multiple Micronutrient Supplementation (MMS): MMS is a combination of micronutrients that includes iron and folic acid as well as other nutrients such as vitamin A and zinc. The latest cochrane review on MMS (containing IFA) relative to IFA alone was performed by [Keats-et-al-2019-maternal-supplementation].
Balanced Energy Protein (BEP): BEP is a type of supplement that provides macronutrients in addition to micronutrients provided by IFA and MMS. The macronutrients provided by BEP supplementation may aid in maternal weight gain, which may improve fetal outcomes, and may be particularly beneifcial to underweight pregnant women and their babies. Notably, there are several different formulations of BEP, which may vary in their effectiveness. The latest cochrane review on BEP supplementation was performed by [Ota-et-al-2015]

In August of 2020, the World Health Organization updated their recommendation on nutritional interventions during pregnancy to include MMS that includes iron and folic acid as part of routine antenatal care. Prior to this update, they recommended only IFA. Additionally, the WHO recommends BEP supplementation during pregnancy in undernourished populations.

Note

According to the 2016 WHO recommendations: Undernourishment is usually defined by a low BMI (i.e. being underweight). For adults, a 20–39% prevalence of underweight women is considered a high prevalence of underweight and 40% or higher is considered a very high prevalence (46). Mid-upper arm circumference (MUAC) may also be useful to identify protein–energy malnutrition in individual pregnant women and to determine its prevalence in this population (31). However, the optimal cut-off points may need to be determined for individual countries based on context-specific cost–benefit analyses (31).

IFA is widely used as a prenatal supplement in most areas of the world and is recommended by the WHO as part of routine antenatal care, although coverage and adherence levels vary. Given the relatively recent recommendation regarding MMS and the relatively high cost of BEP, the coverage of these inteventions at a wide scale is believed to be substantially lower.

Todo

Fill out the following table with a additional known outcomes affected by the intervention.

Affected Outcomes
Outcome	Regimen(s)	Effect	Modeled?	Note
Infant birthweight	IFA, MMS, BEP	Increases population mean	Yes	Differential effect by regimen. Effect modification by counterfactual birthweight (or proxy such as maternal nourishment)
Maternal anemia	IFA, MMS, BEP	Increases population mean hemoglobin	Yes	Non-linear dose response likely. Differential effect by regimen. Effect modification by baseline hemoglobin likely.
Maternal nourishment (BMI)	BEP	TBD	No	Needs more investigation
Child wasting	BEP	Increases population mean WLZ	Yes (hypothesized effect in the BEP simulation). Should not be modeled in simulations using conservative evidence	Possible mediation through birthweight. Low quality evidence.
Child stunting	BEP	Increases population mean LAZ	Yes (hypothesized effect in the BEP simulation). Should not be modeled in simulations using conservative evidence	Possible mediation through birthweight/wasting. Low quality evidence.

Baseline Coverage Data 

Given the low utilization of MMS and BEP relative to IFA, we assume that baseline coverage of MMS and BEP are zero. Baseline coverage of IFA varies by location, and Demographic Health Surveys are good data sources for the proportion of pregnant women who took iron supplementation during pregnancy.

Warning

Maternal supplementation interventions are typically delivered through antenatal care (ANC) visits. Therefore, maximum alternative scenario coverage should be considered to be equal to the proportion of pregnant women who attend ANC visits in the absence of an intervention to increase ANC attendance or an alternative maternal supplementation delivery program.

Baseline coverage data
Location	Subpopulation	Coverage parameter	Value	Note
South Asia (location ID 159)	Pregnant population at ANC	Proportion who took any antenatal iron	0.83 (0.79, 0.87), assume normal distribution of uncertainty	Calculated from GBD covariate data from the CIFF grant as provided by Nat Henry: estimation excludes Bhutan (location ID=162), which is only 0.04 percent of total PLW in South Asia. Do not use this value for the IV iron simulation, rather, use the values in the .csv file on the IV iron simulation landing page.
Sub-Saharan Africa (location ID 166)	Pregnant population at ANC	Proportion who took any antenatal iron	0.74 (0.70, 0.78), assume normal distribution of uncertainty	Calculated from same GBD covariate data as above regional aggregation was performed using a subset of countries with available data, representing approximately 60% of all PLW in SSA. Do not use this value for the IV iron simulation, rather, use the values in the .csv file on the IV iron simulation landing page.
Ethiopia	Pregnant population	Proportion who took any antenatal iron	0.598 (0.583, 0.613), normal distribution of uncertainty clipped between zero and one	Use this value for the acute malnutrition simulation; DHS 2019
Ethiopia	Pregnant population	Proportion who took antenatal iron for 90+ days	0.106	DHS 2019. Don’t use this value for Nutrition optimization! Will be provided on concept model document.
India	Pregnant population	Proportion who took antenatal iron for 90+ days	0.387	DHS 2017
Mali	Pregnant population	Proportion who took antenatal iron for 90+ days	0.28	DHS 2017
Pakistan	Pregnant population	Proportion who took antenatal iron for 90+ days	0.294	DHS 2017. Don’t use this value for Nutrition optimization! Will be provided on concept model document.
Tanzania	Pregnant population	Proportion who took antenatal iron for 90+ days	0.214	DHS 2017

Note

DHS has coverage data specific to women who took iron tablets for <60 and 60-89 days too as well as stratified by age, residence, region, education, and wealth quintile.

The baseline percent of women taking any antenatal iron during pregnancy (59.8%) was chosen instead of the percent of women who took antenatal iron during pregnancy for 90 or more days (10.6%) to be conservative and due to the following finding in [Pena-Rosas-et-al-2015]:

“Overall, for women receiving any intermittent iron regimen (with or without other vitamins and minerals) compared with a daily regimen there was no clear evidence of differences between groups for any infant primary outcomes: low birthweight (average risk ratio (RR) 0.82; 95% confidence interval (CI) 0.55 to 1.22; participants = 1898; studies = eight; low quality evidence), infant birthweight (mean difference (MD) 5.13 g; 95% CI ‐29.46 to 39.72; participants = 1939; studies = nine; low quality evidence), premature birth (average RR 1.03; 95% CI 0.76 to 1.39; participants = 1177; studies = five; low quality evidence), or neonatal death (average RR 0.49; 95% CI 0.04 to 5.42; participants = 795; studies = one; very low quality). None of the studies reported congenital anomalies.” (Abstract)

Note that the BEP simulation used the proportion of women who took antenatal iron for 90+ days for baseline coverage.

For the proportion of women who took any antenatal iron in Ethiopia, the confidence interval was calculated using the formula \(1.96 \times \sqrt{\frac{p \times (1 - p)}{n}}\). Confidence intervals could/should be estimated in a similar way for the remaining estimates using the reported sample size of the survey if/when necessary.

Vivarium Modeling Strategy 

The maternal supplementation intervention is administered to mothers and impacts both the mother and infant. To model the impact of the intervention on either child or maternal outcomes, simulant attributes for maternal nourishment exposure (BMI/x-factor) and maternal ANC attendance exposure are required. Additionally, to model the impact on child growth, child growth exposures are required. To model the impact on maternal mortality, a maternal hemoglobin exposure value is required. This intervention model requires the additional simulant attribute of maternal supplement regimen.

Coverage algorithms 

Individual product coverage algorithms

For use in the nutrition optimization simulation.

For our purposes, each individual antenatal supplementation product (IFA, MMS, and BEP) are mutually exclusive; in other words, a given simulant can only be covered by one of these three products for any given pregnancy. We do not consider changing antenatal supplementation products during a single pregnancy. Supplementation product coverage may depend on other simulant characteristics, such as antenatal care visit attendance or pre-pregnancy body mass index (BMI) exposure.

Note

Although the supplementation products are mutually exclusive, it is important to remember that iron and folic acid (the nutrients present in IFA) are also present in MMS and BEP products. Similarly, the micronutrients present in MMS are assumed to also be present in BEP products. However, BEP contains additional macronutrients that are not provided with MMS or IFA, and likewise, MMS contains micronutrients that are not provided with IFA.

Therefore, the intervention impacts of each intervention product “stack” upon one another such that the effect of BEP includes the effect of IFA relative to no supplementation, MMS relative to IFA, AND BEP relative to MMS. Specific instructions and details are provided in the following sections.

Targeted intervention package coverage algorithm

For use in the Balanced energy protein simulation and the IV iron simulation.

For the implementation of the intervention in an alterative scenarios, we will model BEP supplementation among undernourished mothers and MMS supplementation among adequately nourished mothers rather than IFA supplementation alone, as demonstrated in the following decision tree. The maternal body mass index risk exposure should be used to determine maternal nourishment status for this intervention model (exposed=undernourished).

../../../_images/coverage_decision_tree.svg

Modeled Outcomes
Outcome	Outcome type	Outcome ID	Affected measure	Effect size measure	Effect size	Note
Hemoglobin	Modelable entity	10487	Population mean hemoglobin concentration (as continuous measure)	Mean difference	Varies by supplement regimen	Related effect on anemia reduction
Birthweight	Risk exposure	339	Population mean birthweight (as continuous measure)	Mean difference	Varies by supplement regimen	Assume no difference in gestational age

Maternal Hemoglobin 

All regimens in the maternal supplementation interventions affect the hemoglobin concentration of pregnant and lactating women who are covered by them. Notably, the intervention will not affect the hemoglobin level of women of reproductive age who are not pregnant or lactating because they will not be covered by this specific intervention. The hemoglobin model document can be found here.

Restrictions for intervention effect on hemoglobin
Restriction	Value	Note
Male only	False
Female only	True
Age group start	10 to 14	Age group ID 7
Age group end	50 to 54	Age group ID 15
Other	Pregnant and lactating women only	(see the pregnancy model document)

Supplementation effect on hemoglobin
Population	Effect size (95% CI)	Note	Source
IFA	+7.8 g/L (4.08, 11.52)	Relative to no supplementation	[Oh-et-al-2020]
MMS	+0 g/L	Relative to IFA
BEP	0 g/L	Relative to IFA/MMS	Gates Trials

How to sample and apply effect sizes:

The intervention hemoglobin shifts should be applied at eight weeks gestation (assume pregnancy identification occurs at six weeks, intervention coverage begins at the time of pregnancy identification, and intervention effect on hemoglobin occurs two weeks after initiation of the intervention). The intervention hemoglobin shift should persist until six weeks postpartum, at which point the simulant’s hemoglobin level should return to the pre-pregnancy value.

Additionally, the code block below walks through how to implement the following considerations:

Assume a normal distribution of uncertainty when sampling from the effect size parameter confidence intervals
Hemoglobin exposure values among PLW need to be calibrated to baseline IFA coverage in the baseline scenario
Effect sizes in the table above are NOT relative to no supplementation and are assumed to be additive to one another. It is important that they are implemented in the method described below due to their overlapping confidence intervals to ensure that the effect of BEP>MMS/IFA in all draws.
The effect of MMS and BEP in the alternative scenario depends on IFA coverage status in the baseline scenario

from scipy.stats import norm

def sample_from_normal_distribution(mean, lower, upper):
    """Instructions on how to sample from a normal distribution given a mean value and
    95% confidence interval for a parameter"""
    std = (upper - lower) / 2 / 1.96
    dist = norm(mean, std)
    return dist.rvs()

"""A hemoglobin shift for each supplement regimen should be sampled independently
for each simulation draw assuming a normal distribution of uncertainty"""
for draw in draws:
    for supplement in ['ifa','mmn','bep']:
        {supplement}_shift_draw = sample_from_normal_distribution({supplement}_mean,
                                                                  {supplement}_lower,
                                                                  {supplement}_upper)

    for i in simulants:

    """In the baseline scenario, we need to calibrate baseline coverage of IFA
    so that the difference between IFA supplemented and unsupplemented babies, on
    average, equals to the ifa_shift AND that the population mean hemoglobin value
    among PLW from GBD is approximately unchanged.

    * hgb_{i} represents the assigned continuous hemoglobin exposure value for a
    simulant sampled from GBD, after the application of the pregnancy adjustment factor
    and BEFORE consideration of the impact of maternal supplementation.

    * baseline_ifa_coverage represents the coverage proportion of IFA for a location and
    specific simulation draw"""
        if baseline_maternal_supplement_{i} == 'none':
            baseline_supplemented_hgb_{i} = hgb_{i} - baseline_ifa_coverage_draw * ifa_shift_draw
        elif baseline_maternal_supplement_i == 'ifa':
            baseline_supplemented_hgb_{i} = hgb_{i} + (1 - baseline_ifa_coverage_draw) * ifa_shift_draw

    """In the alternative scenario, the amount to shift a simulant's hemoglobin (if they are
    covered by MMS or BEP in the alternative scenario) depends on if they were already covered
    by IFA in the baseline scenario"""
        alternative_supplemented_hgb_{i} = baseline_supplemented_hgb_{i}
        if alternative_maternal_supplement_{i} is in ['ifa', 'mmn', 'bep'] and baseline_maternal_supplement_{i} == 'none':
            alternative_supplemented_hgb_{i} =+ ifa_shift_draw
        if alternative_maternal_supplement_{i} is in ['mmn', 'bep']:
            alternative_supplemented_hgb_{i} =+ mmn_shift_draw
        if alternative_maternal_supplement_{i} == 'bep':
            alternative_supplemented_hgb_{i} =+ bep_shift_draw

Assumptions and Limitations

We assume that pregnant women begin taking the supplementation intervention six weeks into their pregnancy. In reality, the average person may begin taking oral iron supplementation closer to the start of the second trimester. However, we have chosen six weeks in order to be conservative as the comparison intervention for the assessment of the impact of the intravenous iron intervention.
We assume that the effect of the intervention persists for six weeks postpartum at which point hemoglobin returns to its pre-pregnancy value
We assume no effect modification by baseline hemoglobin level. In reality, the individual hemoglobin shifts are likely greater among those who are anemic at baseline.

Verification and validation criteria

In the baseline scenario, the exposure distribution of hemoglobin and anemia among PLW and WRA as well as the maternal disorders cause model should match that of GBD.

Hemoglobin exposures stratified by supplementation regimen should match supplementation effect sizes.

The relative risk of anemia by supplmentation regimen should validate to external sources.

Todo

Cite external sources for these validations.

Birthweight 

Note

Note to software engineers: BEP intervention on birthweight has previously been implemented and is hosted here.

The maternal supplementation intervention (all regimens) affect child birthweight exposures, which are documented here. The intervention should result in an additive change to a simulant’s continuous birthweight exposure value at birth (or upon initialization into the early or late neonatal age groups). We assume changes in simulant birthweight are independent from changes in their gestational age exposure value at birth.

Restrictions for intervention effect on birthweight
Restriction	Value	Note
Male only	False
Female only	False
Age group start	Birth
Age group end	Late neonatal
Other

Supplementation effect on birthweight
Population	Effect size (95% CI)	Note	Source
Unsupplemented mothers	0		N/A
IFA supplemented mothers (overall)	+57.73 g (7.66 to 107.79)	Relative to no supplementation	[Pena-Rosas-et-al-2015]
MMN supplemented mothers (overall)	+45.16 (32.31 to 58.02)	Relative to IFA	Meta-analysis of 13 trials from [Keats-et-al-2019-maternal-supplementation], linked as a memo in BEP concept model document
BEP supplemented mothers (undernourished)	+66.96g (13.13 to 120.78)	Relative to MMN	[Ota-et-al-2015]

Note

Adequately nourished BEP supplemented mothers relative to MMN supplemented mothers birthweight shift is +15.93 grams (-20.83 to 52.69) according to [Ota-et-al-2015], but this value should not be used for targeted BEP scenarios given that BEP is only recommended for undernourished mothers

How to sample and apply effect sizes:

The code block below walks through how to implement the following considerations:

Assume a normal distribution of uncertainty when sampling from the effect size parameter confidence intervals
Birthweight exposure values need to be calibrated to baseline IFA coverage in the baseline scenario
Effect sizes in the table above are NOT relative to no supplementation and are assumed to be additive to one another. It is important that they are implemented in the method described below due to their overlapping confidence intervals to ensure that the effect of BEP>MMN>IFA in all draws.
The effect of MMN and BEP in the alternative scenario depends on IFA coverage status in the baseline scenario

from scipy.stats import norm

def sample_from_normal_distribution(mean, lower, upper):
    """Instructions on how to sample from a normal distribution given a mean value and
    95% confidence interval for a parameter"""
    std = (upper - lower) / 2 / 1.96
    dist = norm(mean, std)
    return dist.rvs()

"""A birthweight shift for each supplement regimen should be sampled independently
for each simulation draw assuming a normal distribution of uncertainty"""
for draw in draws:
    for supplement in ['ifa','mmn','bep']:
        {supplement}_shift_draw = sample_from_normal_distribution({supplement}_mean,
                                                                  {supplement}_lower,
                                                                  {supplement}_upper)

    for i in simulants:

    """In the baseline scenario, we need to calibrate baseline coverage of IFA
    so that the difference between IFA supplemented and unsupplemented babies, on
    average, equals to the ifa_shift AND that the population mean birthweight value
    from GBD is approximately unchanged.

    * bw_{i} represents the assigned continuous birthweight exposure value for a
    simulant sampled from GBD, which may or may not have already been affected by other
    factors such as maternal BMI, etc. BEFORE consideration of the impact of
    maternal supplementation.

    * baseline_ifa_coverage represents the coverage proportion of IFA for a location and
    specific simulation draw"""
        if baseline_maternal_supplement_{i} == 'none':
            baseline_supplemented_bw_{i} = bw_{i} - baseline_ifa_coverage_draw * ifa_shift_draw
        elif baseline_maternal_supplement_i == 'ifa':
            baseline_supplemented_bw_{i} = bw_{i} + (1 - baseline_ifa_coverage_draw) * ifa_shift_draw

    """In the alternative scenario, the amount to shift a simulant's birthweight (if they are
    covered by MMS or BEP in the alternative scenario) depends on if they were already covered
    by IFA in the baseline scenario"""
        alternative_supplemented_bw_{i} = baseline_supplemented_bw_{i}
        if alternative_maternal_supplement_{i} is in ['ifa', 'mmn', 'bep'] and baseline_maternal_supplement_{i} == 'none':
            alternative_supplemented_bw_{i} =+ ifa_shift_draw
        if alternative_maternal_supplement_{i} is in ['mmn', 'bep']:
            alternative_supplemented_bw_{i} =+ mmn_shift_draw
        if alternative_maternal_supplement_{i} == 'bep':
            alternative_supplemented_bw_{i} =+ bep_shift_draw

Assumptions and Limitations

We assume that the birthweight shifts of maternal supplementation interventions are equal across the counterfactual unsupplemented birthweight exposure distribution. In reality the impact may be greater among the lower end of the birthweight distribution. Because the same shift in the birthweight among the lower end of the distribution is associated with a greater magnitude of mortality risk reduction than among the higher end of the distribution, we may underestimate the effect of the intervention.
We assume that the birthweight shift for BEP reported by [Ota-et-al-2015] is relative to MMN, although it is actually relative to a reference group with mixed supplementation regimens. Due to the belief that the effect size of BEP may be underestimated (see discussion in the BEP concept model document and manuscript), this may not be a problematic assumption.
We do not consider effect modification by maternal anemia status.
For the acute malnutrition simulation that uses the baseline coverage value of women that took any antenatal iron: We assume that taking any iron supplement is equally as effective as taking daily a iron supplement in the baseline scenario. If it is in fact less effective, we will overestimate the impact of the baseline IFA coverage and therefore underestimate the impact of the MMS and BEP interventions.
For the BEP simulation that uses the baseline coverage value of women that took antenatal iron for 90+ days: We assume that taking antenatal iron for <90 days in the baseline scenario has no impact on birthweight. This assumption may cause us to underestimate (partial) baseline coverage of IFA and therefore overestimate the impact of the MMS and BEP interventions.

Validation and Verification Criteria

In the baseline scenario, the exposure distribution of birthweight (mean birthweight, if available) as well as the mortality rates among the neonatal age groups should match that of GBD.

If birthweight exposures are stratified by supplementation regimen and maternal nourishment strata, then birthweight differences between regimens should match the effect sizes within a given maternal nourishment exposure strata.

Gestational age 

Note

This outcome has been added in June of 2023, and will be first incorporated into the nutrition optimization model and has not been included in the IV iron or BEP simulations.

Research background

The antenatal supplementation products affect child gestational age at birth exposures, which are documented here. While we measure LBWSG exposures at the continuous level (including a joint birth weight and gestational age at birth value), the literature tends to report the effect of antenatal supplementation products on gestational age at birth in terms of a relative risk of preterm birth (less than 37 weeks gestational age at birth) or very preterm birth (less than 32 weeks gestational age at birth), which are summarized in the table below.

Dichotomous effect of antenatal supplementation on preterm birth
Product	Relative to	Outcome	Value	Source
IFA	No IFA	Preterm birth, <37 weeks	OR = 0.9 (95% CI: 0.86, 0.95)	[Li-et-al-2019-antenatal-supplementation]
MMS	IFA	Preterm birth, <37 weeks	RR = 0.91 (95% CI: 0.84, 0.99)	[Gomes-et-al-2023-antenatal-supplementation], effect with prospective last menstrual period and/or ultrasound-based pregnancy dating (rather than retrospective last menstrual period dating). Note that this value was updated between wave I and wave II of the N.O. project from 0.95 (0.90, 1.01) from [Keats-et-al-2019-maternal-supplementation], which did not conduct the outcome assessment quality sensitivity analysis.
MMS	IFA	Very preterm birth, <32 weeks	RR = 0.81 (95% CI: 0.71, 0.93)	[Keats-et-al-2019-maternal-supplementation]
BEP	MMS	Preterm birth, <37 weeks	0.96 (0.80, 1.16); assume no effect	[Ota-et-al-2015]

In order to make these effects compatible with our continuous exposure modeling strategy for LBWSG, we have converted these relative risks of dichotomous outcomes to continuous gestational age “shifts” that result in preterm (and very preterm, if applicable) birth prevalence that replicates the appropriate dichotomous measure of effect.

The methodology for this conversion was inspired in part by the methodology of the air pollution GBD team in calculating the impact of the risk on LBWSG exposures. As with GBD, we assume that these shifts are independent of any shifts in birth weight. However, rather than implement the conversion using the LBWSG exposure distribution specific to the individual study included in a meta-analysis of the overall effect to find a global shift as GBD did, we used the meta-analyzed global relative risks and applied the conversion for each of our modeled locations, resulting in location-specific continuous shifts that replicate the global dichotomous effect. In the case of birth weight shifts, it may be more accurate to assume that the relative risks are generalizable across locations.

Additionally, our methods differ from GBD’s in that we estimated two separate GA shifts, conditional on baseline GA exposure, for the effect of MMS relative to IFA rather than a single shift applied equally to the entire distribution. This approach allowed us to replicate the literature-reported relative risks of MMS on both preterm birth (<37 weeks) as well as very preterm birth (<32 weeks). This “dual shift” approach follows these steps:

Find and apply a shift to the entire distribution that results in the replication of the very preterm birth dichotomous effect
Find and apply a second shift that replicates the preterm birth dichotomous effect when applied only to the portion of the distribution with baseline gestational age exposures that are greater than 32 (the very preterm birth threshold) minus this second shift. Note that the second shift will be negative in direction.

The estimation of the antenatal supplementation gestational age shifts as described was performed in this notebook

Assumptions and limitations

In the case of IFA, we assume that the entire distribution experiences the same constant shift in gestational age. It is more likely that the lower end of the distribution experiences a greater shift and that the upper end experiences little to no shift (as supported from the MMS evidence). This limitation will result in an underestimation of the impact of the lower end of the distribution (which has a high magnitude of risk, but a low overall exposure) and an overestimation of the impact on the upper end of the distribution (which has lower risk magnitude, but higher overall exposure). However, we have limited data on how to better apply such a shift.
In the case of MMS, although we have improved the assumption of a single shift applied to the entire distribution through our “dual shift” strategy, it is still limited in that the true shift is likely more of a continuous function with baseline gestational age rather than two conditional values. In particular, a limitation of this approach is the illogical implication that the effect of treatment on a birth that would have been 31.9 weeks without treatment leads to a longer gestation than the effect of the same treatment on a birth that would have been 32.1 weeks without treatment.

We have some ideas for how we might improve this limitation, including:
1. Create a function of the dichotomous effect of MMS relative to IFA as a function of baseline gestational age exposure by assuming a linear relationship between the points (32, log(very preterm birth RR)) and (37, log(preterm birth RR)), potentially with some additional constraints (such as constant dichotomous effects above or below some thresholds).
2. Find gestational age shifts as a function of baseline gestational age that replicates the relative risk values along the line developed in step 1.
However, we will remain limited by the lack of reported information on the true shape of the association between these “gestational age shifts” and baseline gestational age exposure.

Modeling strategy

The supplementation intervention (all regimens) affects infant gestational age at birth exposures, which are documented here.

Antenatal supplementation intervention should result in an additive change to a simulant’s continuous gestational age exposure value at birth (or upon initialization into the early or late neonatal age groups). The LBWSG risk exposure document can be found here. We assume changes in simulant gestational age exposure values are independent from changes in their birth weight exposure values.

Restrictions for intervention effect on birthweight
Restriction	Value	Note
Male only	False
Female only	False
Age group start	Birth
Age group end	Late neonatal
Other

Supplementation effect on gestational age
Product	Relative to	Subpopulation	Shift	Note
IFA	No supplementation	Overall	IFA_SHIFT
MMS	IFA	IFA-shifted GA < (32 - MMS_SHIFT_2)	MMS_SHIFT_1
MMS	IFA	IFA-shifted GA >= (32 - MMS_SHIFT_2)	MMS_SHIFT_1 + MMS_SHIFT_2
BEP	MMS	Overall	0	Note effect of BEP is equivalent to effect of MMS relative to IFA or no supplementation

Where,

Gestational age shift values
Parameter	Value
IFA_SHIFT	Location-specific .csv files of IFA_SHIFT values can be found here
MMS_SHIFT_1	Location-specific .csv files of MMS_SHIFT_1 values can be found here
MMS_SHIFT_2	Location-specific .csv files of MMS_SHIFT_2 values can be found here

Verification and validation criteria

In the baseline scenario, the LBWSG exposure distribution as well as the mortality rates among the neonatal age groups should match that of GBD.

When birthweight exposures are stratified by supplementation regimen and maternal nourishment strata, then birthweight differences between regimens should match the effect sizes within a given maternal nourishment exposure strata.

The dichotomous measures of effects should also replicate the intended values.

Birth outcomes 

Antenatal supplementation interventions will affect the risk of stillbirth for live/stillbrith pregnancies (NOTE: not necessary to apply to abortion/miscarriage/ectopic pregnancies), as described in the pregnancy model document. Notably, it is assumed that increased risk of stillbirth will result in decreased risk of live birth and vise versa, with no impact on the risk of abortion/miscarriage or ectopic pregnancy.

The observed effect of each antenatal supplementation product on the risk of stillbirth is summarized below:

Stillbirth effects
Supplementation product	Stillbirth RR	Source
IFA	1	Lack of evidence
MMS	0.91 (95% CI: 0.71, 0.93), lognormal distribution of uncertainty	Relative to no supplementation/IFA [Oh-et-al-2020]
BEP	0.39 (95% CI: 0.19, 0.80), lognormal distribution of uncertainty	Relative to no supplementation/IFA, [Lassi-et-al-2020-antenatal-supplementation]

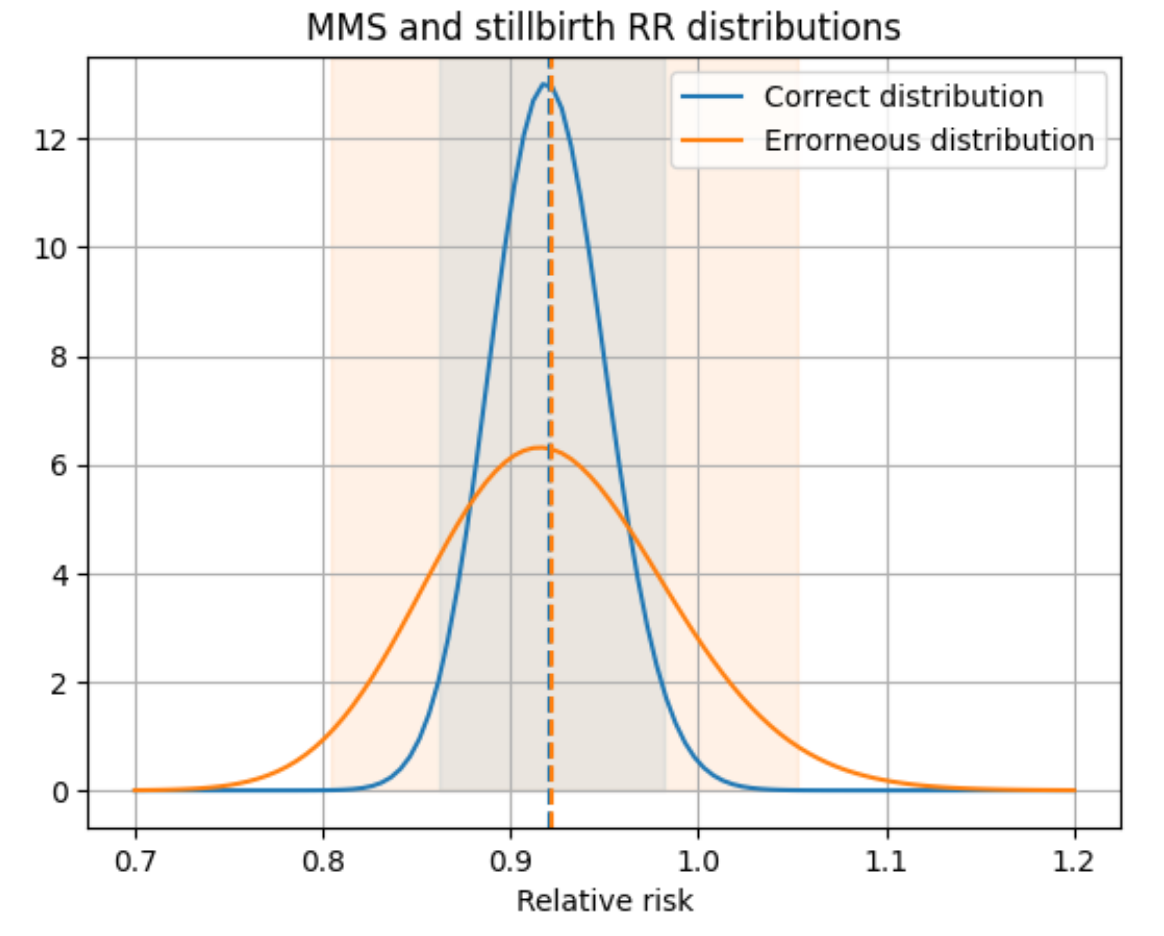

Warning

The above MMS effect should say 0.91 (95% CI: 0.86, 0.98); the CI is a copy-paste error from the MMS effect on very preterm birth in [Keats-et-al-2019-maternal-supplementation]. However, it was implemented as written in the nutrition optimization simulation.

Notably, the function that generates the lognormal distribution (get_lognorm_from_quantiles) uses the quantiles to calculate a standard deviation and apply that about the mean rather than use the quantiles directly. Therefore, the transcription error in the confidence interval of the effect of MMS resulted in an overestimation of the uncertainty of this parameter, but did not significantly bias the mean value of the distribution. A comparison of the intended versus erroneous distribution that was used in the simulation and the code used to create it is shown below.

import matplotlib.pyplot as plt
from vivarium_gates_mncnh.utilities import get_lognorm_from_quantiles

mn = 0.92
lcl = 0.86
ucl = 0.98
lcl_alt = 0.71
ucl_alt = 0.93

dist = get_lognorm_from_quantiles(mn, lcl, ucl)
dist_alt = get_lognorm_from_quantiles(mn, lcl_alt, ucl_alt)

x = np.linspace(0.7, 1.2, 100)
plt.plot(x, dist.pdf(x), label='Correct distribution')
plt.plot(x, dist_alt.pdf(x), label='Erroneous distribution')
plt.axvline(dist.mean(), color='tab:blue', linestyle='--')
plt.axvline(dist_alt.mean(), color='tab:orange', linestyle='--')
y_val = 13.5
plt.fill_between([dist.ppf(0.025), dist.ppf(0.975)], [0, 0], [y_val, y_val], color='tab:blue', alpha=0.1)
plt.fill_between([dist_alt.ppf(0.025), dist_alt.ppf(0.975)], [0, 0], [y_val, y_val], color='tab:orange', alpha=0.1)
plt.legend()
plt.ylim(ymax=y_val)
plt.xlabel('Relative risk')
plt.title('MMS and stillbirth RR distributions')
plt.grid()

Because there is no effect of IFA on stillbirths and we assume there is no baseline coverage of MMS or BEP, there is no differentiation in stillbirth rate due to baseline coverage of antenatal supplementation products in our modeled populations. Therefore, we can simply apply the relative risk of stillbirth directly to the baseline stillbirth rate without accounting for calibration of baseline coverage (in other words, the PAF of antenatal supplementation on stillbirths is equal to 0).

The relative risk for this risk factor will apply to the probability of experiencing still birth such that:

\[ \begin{align}\begin{aligned}\text{stillbirth probability}_\text{no supplementation} = \text{stillbirth probability}_{overall}\\\text{stillbirth probability}_\text{supplement} = \text{stillbirth probability}_{overall} * RR_\text{supplement}\end{aligned}\end{align} \]

And the probabilities of experiencing the remaining birth outcomes are as follows:

\[ \begin{align}\begin{aligned}\text{other probability}_\text{no supplementation} = \text{other probability}_{overall}\\\text{other probability}_\text{supplement} = \text{other probability}_{overall}\\\text{live birth probability}_\text{no supplementation} = \text{live birth probability}_{overall}\\\text{live birth probability}_\text{supplement} = 1 - \text{stillbirth probability}_\text{supplement} - \text{other probability}_{overall}\end{aligned}\end{align} \]

Where, \(\text{stillbirth probability}_{overall}\), \(\text{live birth probability}_{overall}\), and \(\text{other probability}_{overall}\) are defined on the closed cohort pregnancy model document and \(RR_\text{supplement}\) is the supplementation product-specific relative risk of stillbirth, as defined in the table above.

Validation and verification criteria

The rate of each birth outcome should continue to validate to input data in the baseline scenario
Birth outcome rates stratified by the intervention coverage should verify to the magnitude of the risk effect

Assumptions and limitations

There is an observed association between severe anemia during pregnancy and stillbirth, as shown in [Young-et-al-2019]. Therefore, there should hypothetically be some effect of IFA on stillbirth given that it improves hemoglobin concentration during pregnancy; however, we do not consider this effect due to lack of evidence that shows a direct effect of IFA on stillbirth outcomes.

Child Growth Failure (CGF)

While there is little to no evidence that maternal supplementation interventions during pregnancy have a direct effect on CGF exposure, there is evidence that birthweight is causally related to CGF, as discussed on the risk-risk correlation and causation pages for birthweight and wasting and birthweight and stunting. Therefore maternal supplementation interventions during pregnancy may influence CGF exposures through the pathway 100% mediated through birthweight. Notably, it is possible that BEP supplementation during lactation (rather than pregnancy) is directly causally related to CGF exposure, although there is little available evidence on this association (although there are expected measures of association in currently unpublished BMGF trials), but we will not consider this pathway in our simulation until more evidence is available.

Existing evidence that antenatal supplementation is related to CGF exposure later in life includes a recent analysis that found IFA supplementation was associated with reduced risk of stunting among children less than two years of age [Nisar-et-al-2020] (RR: 0.92, 95% CI: 0.89, 0.95).

The modeling strategy for the causal impact of maternal supplementation during pregnancy on child growth failure will be informed entirely through the impact on infant birthweight (described above) and the evidence of the impact of birthweight on child growth failure, as informed from [McGovern-et-al-2019-maternal-supplementation] (see the risk-risk correlation and causation pages for birthweight and wasting and birthweight and stunting for more details on the literature evidence and research background).

Note

Reasons that studies of maternal supplementation interventions have not shown evidence of an impact on child growth failure exposure include smaller sample sizes that required to measure small effects and lack of sufficient follow-up periods in maternal supplementation trials with primary outcomes of interest involving birth outcomes. Therefore, we will model the impact of maternal supplementation interventions mediated through birthweight for the acute malnutrition simulation despite lack of evidence of this association in the literature.

Dynamic child wasting

This modeling strategy is intended to work in tandem with the dynamic transition model of child wasting. The effect of birthweight improvements due to maternal supplementation on child wasting exposure will be applied to the wasting state that the simulant is initialized into. We will conservatively assume that birthweight improvements due to maternal supplementation does not have an impact on x-factor exposure status and/or wasting exposure transition rates.

Note

We may eventually revisit the modeling strategy to follow less conservative assumptions

For each gram increase in a simulant’s birthweight due to a maternal supplementation intervention (\(S\)), the category 1 (severe wasting/SAM) and category 2 (moderate wasting/MAM) exposures used to determine the probability of initialization into those states should be reduced proportionately such that the total reduction in moderate and severe wasting exposure prevalence is equal to 0.0115 / 200 = 0.0000575. The exposure prevalence of category 3 (mild wasting) should be increased by 0.0115 / 200 = 0.0000575. The figure below demonstrates how to implement this change visually.

For the acute malnutrition simulation, the impact of maternal supplementation interventions on CGF exposures can be implemented for simulants born into the simulation only given the six month burn-in period.

Note

For baseline calibration of IFA coverage and wasting initialization state:

The \(S\) shift applied to the wasting initialization probabilities according to baseline IFA coverage should be the following:

uncovered = -(IFA_bw_shift * baseline_IFA_coverage)

covered = -(IFA_bw_shift * baseline_IFA_coverage) + IFA_bw_shift

Then, the \(S\) shift in the intervention scenario should be equal to the sum of all maternal supplementation intervention impacts on birthweight.

../../../_images/wasting_exposure_dist.svg

Assumptions and limitations

The application of the size from [McGovern-et-al-2019-maternal-supplementation] makes the following assumptions:

The effect size is entirely causal and not subject to confounding
The effect between BW and wasting measured among children under five is applied to prevalent wasting status at six months of age only and does not affect future wasting exposure trajectories (aside from any associated vicious cycle effects). This is a conservative underestimation of the impact of birthweight on child wasting burden.
The effect of BW on wasting applies proportionately to moderate and severe wasting

Verification and validation criteria

Verification and validation criteria for the dynamic transition model of child wasting should continue to be met in the baseline scenario
The effect of the maternal supplementation intervention on birthweight (described in the above section) should continue to meet its validation and verification crtiera
Wasting exposure state prevalence in the age groups less than six months of age (which should be reflective of initialization wasting state) stratified by maternal supplementation regimen should match the expected effect sizes

Static child wasting

This modeling strategy is intended to work in tandem with the STATIC model of child wasting and should be used for the IV iron child simulation.

For each gram increase in a simulant’s birthweight due to a maternal supplementation intervention (\(S\)), the category 1 (severe wasting/SAM) and category 2 (moderate wasting/MAM) exposures should be reduced proportionately such that the total reduction in moderate and severe wasting exposure prevalence is equal to 0.0115 / 200 = 0.0000575. The exposure prevalence of category 3 (mild wasting) should be increased by 0.0115 / 200 = 0.0000575. The figure below demonstrates how to implement this change visually. This effect should persist across all ages under five.

Note

For baseline calibration of IFA coverage and wasting initialization state:

The \(S\) shift applied to the wasting initialization probabilities according to baseline IFA coverage should be the following:

uncovered = -(IFA_bw_shift * baseline_IFA_coverage)

covered = -(IFA_bw_shift * baseline_IFA_coverage) + IFA_bw_shift

Then, the \(S\) shift in the intervention scenario should be equal to the sum of all maternal supplementation intervention impacts on birthweight.

Assumptions and limitations

The application of the size from [McGovern-et-al-2019-maternal-supplementation] makes the following assumptions:

The effect size is entirely causal and not subject to confounding
The effect between BW and wasting measured among children under five is applied to prevalent wasting status at six months of age only and does not affect future wasting exposure trajectories (aside from any associated vicious cycle effects). This is a conservative underestimation of the impact of birthweight on child wasting burden.
The effect of BW on wasting applies proportionately to moderate and severe wasting

Verification and validation criteria

Verification and validation criteria for the static model of child wasting should continue to be met in the baseline scenario
The effect of the maternal supplementation intervention on birthweight (described in the above section) should continue to meet its validation and verification crtiera
Wasting exposure state prevalence stratified by maternal supplementation regimen should match the expected effect sizes

Child stunting

For each gram increase in a simulant’s birthweight due to a maternal supplementation intervention (including the lack of baseline IFA coverage), the category 1 (severe stunting) and category 2 (moderate stunting) exposures used to determine the probability of initialization into those states should be reduced proportionately such that the total reduction in moderate and severe stunting exposure prevalence is equal to \(Y\) (defined in the table below). The exposure prevalence of category 3 (mild stunting) should be increased by \(Y\). The figure below demonstrates how to implement this change visually. This change in the stunting expousure distribution thresholds attributable to a change in birthweight should be implemented at birth, after the calculation of the simulant’s stunting initialization propensity correlated with their birthweight percentile, as described above.

Child Anthropometry Metrics
Parameter	Value	Note	Source
\(Y\)	0.0001 (SD: 0.00003)	Assume a normal distribution of uncertainty.	[McGovern-et-al-2019-maternal-supplementation]; 200g increase in birthweight associated with a 2.0 (SD: 0.6) percentage decrease in stunting exposure, scaled to a a single gram increase in birthweight. 2.0 was selected instead of 2.3 in order to be conservative.

Note

Similar to child wasting, for baseline calibration of IFA coverage and wasting initialization state:

The \(S\) shift applied to the stunting risk exposure probabilities according to baseline IFA coverage should be the following:

uncovered = -(IFA_bw_shift * baseline_IFA_coverage)

covered = -(IFA_bw_shift * baseline_IFA_coverage) + IFA_bw_shift

Then, the \(S\) shift in the intervention scenario should be equal to the sum of all maternal supplementation intervention impacts on birthweight.

../../../_images/stunting_exposure_dist.svg

Assumptions and limitations

The application of the size from [McGovern-et-al-2019-maternal-supplementation] makes the following assumptions:

The effect size is entirely causal and not subject to confounding
The effect of BW on stunting applies proportionately to moderate and severe stunting
We apply the average effect of birthweight on stunting exposure for all ages under 5 years and do not consider effect modification by age, although [McGovern-et-al-2019-maternal-supplementation] suggests that the effect is likely larger among younger ages.

Verification and validation criteria

Verification and validation criteria for the child stunting risk exposure component should continue to be met in the baseline scenario
The effect of the maternal supplementation intervention on birthweight (described in the above section) should continue to meet its validation and verification crtiera
Stunting exposure state in all age groups stratified by maternal supplementation regimen should match the expected effect sizes
Model results should be compared to external validation criteria such as [Nisar-et-al-2020] and Christian et al. 2013 (discussed on the child stunting risk exposure page)

References 

[Gomes-et-al-2023-antenatal-supplementation]

Gomes F, Askari S, Black RE, Christian P, Dewey KG, Mwangi MN, Rana Z, Reed S, Shankar AH, Smith ER, Tumilowicz A. Antenatal multiple micronutrient supplements versus iron-folic acid supplements and birth outcomes: Analysis by gestational age assessment method. Matern Child Nutr. 2023 Jul;19(3):e13509. https://doi.org/10.1111/mcn.13509

[Keats-et-al-2019-maternal-supplementation] (1,2,3,4,5)

Keats EC, Haider BA, Tam E, Bhutta ZA. Multiple‐micronutrient supplementation for women during pregnancy. Cochrane Database of Systematic Reviews 2019, Issue 3. Art. No.: CD004905. DOI: 10.1002/14651858.CD004905.pub6. Accessed 30 August 2021. https://www.cochranelibrary.com/cdsr/doi/10.1002/14651858.CD004905.pub6/full

[Lassi-et-al-2020-antenatal-supplementation]

Lassi ZS, Padhani ZA, Rabbani A, Rind F, Salam RA, Das JK, Bhutta ZA. Impact of Dietary Interventions during Pregnancy on Maternal, Neonatal, and Child Outcomes in Low- and Middle-Income Countries. Nutrients. 2020 Feb 19;12(2):531. doi: 10.3390/nu12020531. PMID: 32092933; PMCID: PMC7071393.

[Li-et-al-2019-antenatal-supplementation]

Li, B., Zhang, X., Peng, X., Zhang, S., Wang, X., & Zhu, C. (2019). Folic Acid and Risk of Preterm Birth: A Meta-Analysis. Frontiers in Neuroscience, 13, 1284. https://doi.org/10.3389/fnins.2019.01284

[McGovern-et-al-2019-maternal-supplementation] (1,2,3,4,5,6)

McGovern, M. E. (2019). How much does birth weight matter for child health in developing countries? Estimates from siblings and twins. Health economics, 28(1), 3-22. https://pubmed.ncbi.nlm.nih.gov/30239053.

[Nisar-et-al-2020] (1,2)

Nisar YB, Aguayo VM, Billah SM, Dibley MJ. Antenatal Iron-Folic Acid Supplementation Is Associated with Improved Linear Growth and Reduced Risk of Stunting or Severe Stunting in South Asian Children Less than Two Years of Age: A Pooled Analysis from Seven Countries. Nutrients. 2020 Aug 28;12(9):2632. doi: 10.3390/nu12092632. https://pubmed.ncbi.nlm.nih.gov/32872329/

[Oh-et-al-2020] (1,2)

Oh, C., Keats, E. C., & Bhutta, Z. A. (2020). Vitamin and Mineral Supplementation During Pregnancy on Maternal, Birth, Child Health and Development Outcomes in Low- and Middle-Income Countries: A Systematic Review and Meta-Analysis. Nutrients, 12(2), 491. https://doi.org/10.3390/nu12020491

[Ota-et-al-2015] (1,2,3,4,5)

Ota E, Hori H, Mori R, Tobe‐Gai R, Farrar D. Antenatal dietary education and supplementation to increase energy and protein intake. Cochrane Database of Systematic Reviews 2015, Issue 6. Art. No.: CD000032. DOI: 10.1002/14651858.CD000032.pub3. Accessed 30 August 2021. https://www.cochranelibrary.com/cdsr/doi/10.1002/14651858.CD000032.pub3/full

[Pena-Rosas-et-al-2015] (1,2,3)

Peña‐Rosas JP, De‐Regil LM, Gomez Malave H, Flores‐Urrutia MC, Dowswell T. Intermittent oral iron supplementation during pregnancy. Cochrane Database of Systematic Reviews 2015, Issue 10. Art. No.: CD009997. DOI: 10.1002/14651858.CD009997.pub2. Accessed 30 August 2021. https://www.cochranelibrary.com/cdsr/doi/10.1002/14651858.CD009997.pub2/full <https://www.cochranelibrary.com/cdsr/doi/10.1002/14651858.CD009997.pub2/full>
